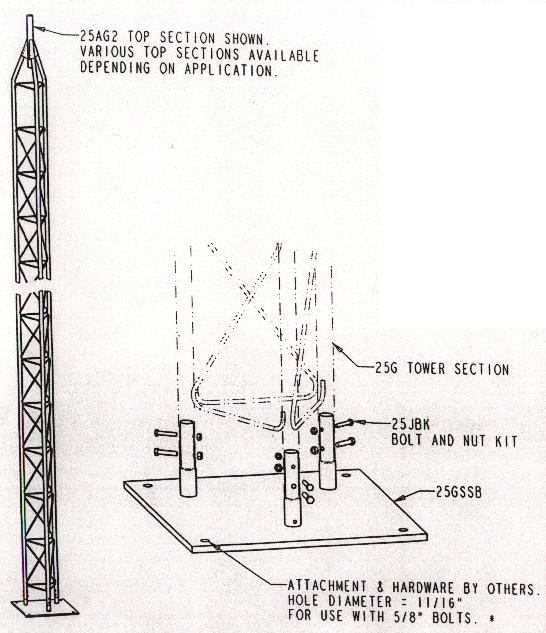

Model 25GSSB
Notes:
This is recommended for no more than 2 sections depending on the load. 25G steel is fairly light and was designed for guyed towers so I'm recommending that you do not use this base plate for any type of heavy load.
2013 Pricing
$206.00
Order Form For ROHN Towers & Accessories
Notes:
 |
Mount should only be used on a flat supporting surface |
|
All antenna installations should be grounded by the installer to meet all applicable codes. |
|
To insure safety, no installation should be attempted without a local professional structural analysis. |
|
Inspect the mount and antenna installation at least every 6 months. |
|
It is the installers responsibility to verify that his installation is adequate to withstand all loads imposed by this mount and antenna. |
|
Local zoning and/or building codes and insurance companies may require architect or structural engineering approval prior to installation. |
|
It is the installers responsibility to verify that connection bolts and the roof supporting structure is capable of supporting all loads created by the antenna, tower and base. |
|
Contact DCC Sales for information about the maximum tower height and allowable antenna areas. |
