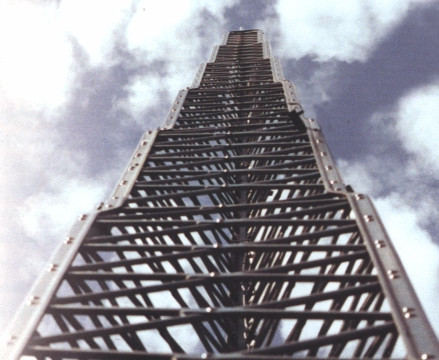

BX, HBX & HDBX Series Towers for 2024

Premium Laser Cut USA Made Self Supporting Towers

From 24 to 72 feet - Galvanized Steel Towers

Please Confirm by E-Mail Your Shipping Cost.

Start Here with your copy of our Understanding TIA-222-Revision G Flier

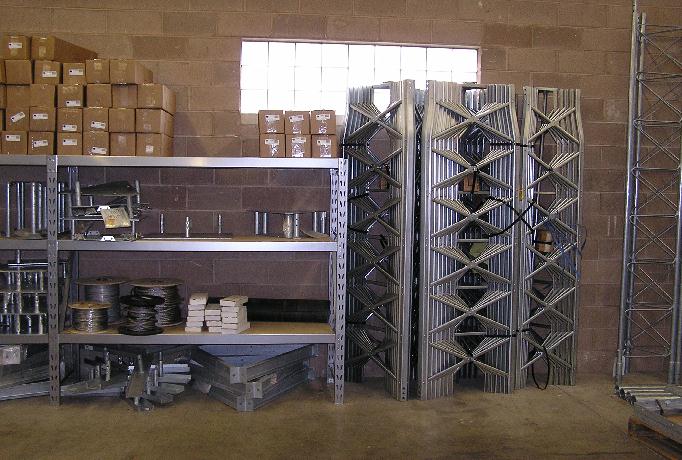

BX Series Parts List

BX Series Price Sheet (EXCEL)

Standard Catalog for 2024

 BX Catalog in Adobe.pdf (Old Data, Still OK)

Legacy BX Catalog for Reference

Wind Loading Page 70 MPH

Order Form For Towers & Accessories

You Have A Used BX and Need To ID It?

Bolt Torque Spec's for BX Hardware

Please contact us for a quote. E-mail or call: 603-425.9876

Tell us which tower/parts you need & your "ship to" city & zip code.

If you can supply a local "Commercial Address" for delivery, that saves on shipping.

Also if you have access to a truck, you can pick up your order at the closest Terminal. That saves shipping costs.

These towers are built to order with a 2-4 week lead time average. Please figure that in your plan.

We will send you a material & freight quote generally the same day!

It is always best to contact us by E-mail

2024 Parts Price Sheet

Discount Prices, Factory Direct Shipping

Based on 04/2022 Factory Pricing

Note: New Pricing in effect. If your collecting bids, be sure it's from a Current Price sheet!

 Old BX Part Number

Order the New T.S. Part Number

Description

Weight, Lbs.

Manufacturer's Dealer Net

Sandown Wireless Dealer Net

BX1A TBX1A OFFSET TOP SECTION W/PLATES & HARDWARE (Note: Not drilled for the ROHN Bearings) 33.00 $708.00 $620.00
BX2 TBX2 STANDARD OFFSET SECTION 33.00 $557.00 $488.00
BX2A TBX2A OFFSET TOP SECTION W/PLATES & HARDWARE 38.00 $745.00 $652.00
BX24 TBX24 24' STANDARD TOWER ASSEMBLY W/M8 (ORDER BASE STUBS, BXB3 SEPARATELY) 101.00 $1,825.00 $1,597.00
BX3 TBX3 STANDARD OFFSET SECTION 35.00 $591.00 $518.00
BX3A TBX3A OFFSET TOP SECTION W/PLATES & HARDWARE 40.00 $782.00 $685.00
BX32 TBX32 32' STANDARD TOWER ASSEMBLY W/M8 (ORDER STUBS, BXB4 AS A SEPARATE ITEM) 158.00 $2,430.00 $2,171.00
BX4 TBX4 STANDARD OFFSET SECTION 57.00 $598.00 $524.00
BX40 TBX40 40' STANDARD TOWER ASSEMBLY W/M8 (ORDER STUBS, BXB5 AS A SEPARATE ITEM) 221.00 $3,054.00 $2,765.00
BX48 TBX48 48' STANDARD TOWER ASSEMBLY W/M8 (ORDER STUBS, BXB6 AS A SEPARATE ITEM) 294.00 $3,675.00 $3,216.00
BX5 TBX5 STANDARD OFFSET SECTION 63.00 $698.00 $611.00
BX56 TBX56 56' STANDARD TOWER ASSEMBLY W/M8 (ORDER STUBS, BXB7/8 AS A SEPARATE ITEM) 369.00 $4,393.00 $3,844.00
BX6 TBX6 STANDARD OFFSET SECTION 73.00 $808.00 $707.00
BX64 TBX64 64' STANDARD TOWER ASSEMBLY W/M8 (ORDER STUBS, BXB7/8 AS A SEPARATE ITEM) 452.00 $5,253.00 $4,597.00
BX72 TBX72 72' STANDARD TOWER ASSEMBLY (BX64) WITH SECTION-8 STRAIGHT AND M8 MAST (ORDER STUBS, BXB7/8 AS A SEPARATE ITEM) 535.00 $6,536.00 $5,720.00
BX7 TBX7 STANDARD OFFSET SECTION 75.00 $1,107.00 $969.00
BX8 TBX8 STANDARD OFFSET SECTION 83.00 $1,221.00 $1,069.00

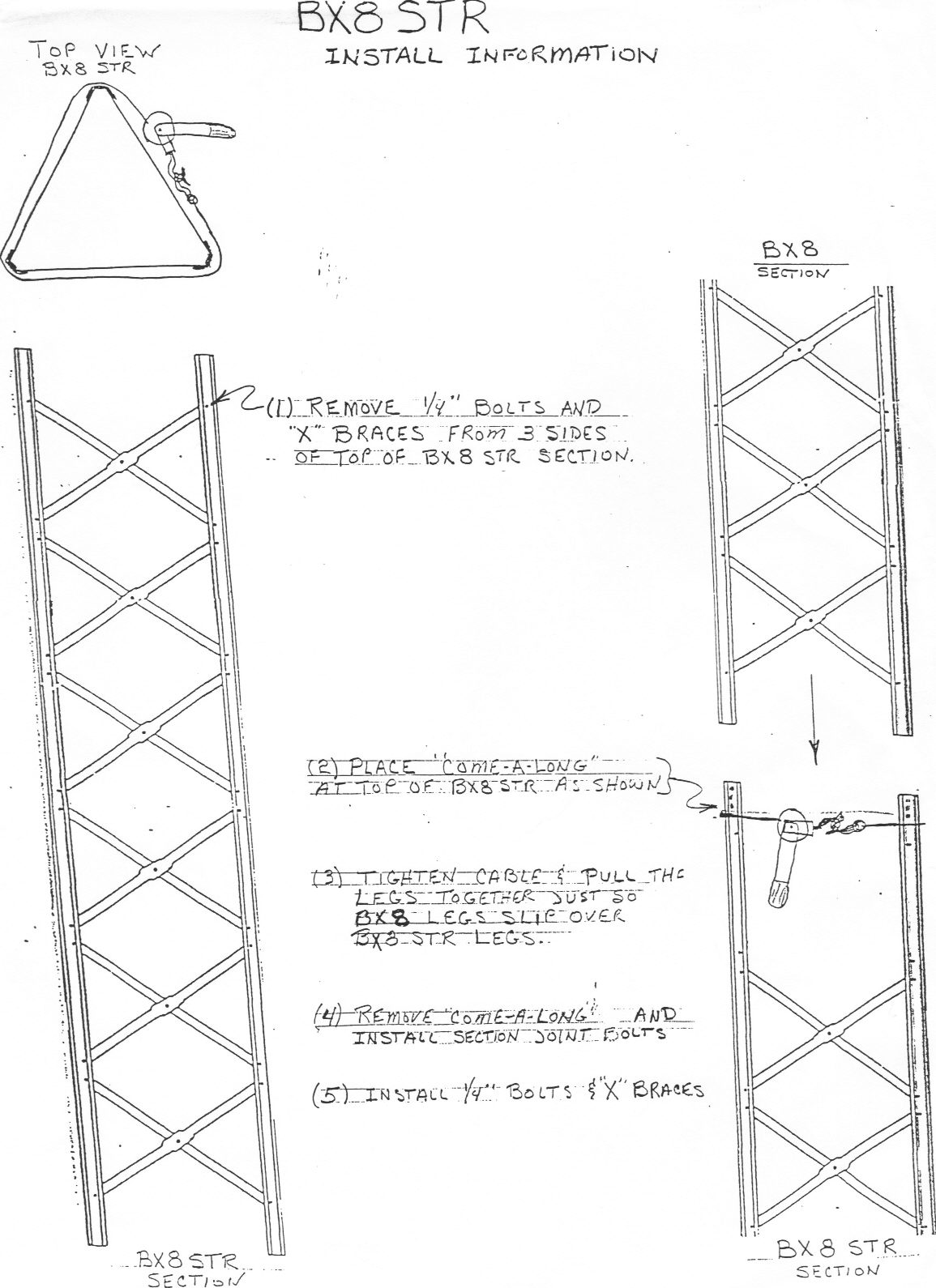

BX8-Straight TBX8ST Custom EXTENSION #8 SECTION (Bottom) Installs under section 8, Makes the BX64, HBX56 and HDBX48, 8 feet taller. 85.00 $1,283.00 $1,123.00
BXB3 BS-3 4' CONCRETE BASE STUBS (SET/3) W/ACWS - Fits Bottom Section #3 13.00 $210.00 $184.00
BXB4 BS-4 4' CONCRETE BASE STUBS (SET/3) W/ACWS - Fits Bottom Section #4 17.00 $228.00 $200.00
BXB5 BS-5 4' CONCRETE BASE STUBS (SET/3) W/ACWS - Fits Bottom Sections #5 22.00 $245.00 $215.00
BXB6 BS-6 4' CONCRETE BASE STUBS (SET/3) W/ACWS - Fits Bottom Sections #6 23.00 $263.00 $231.00
BXB7/8 BS-7/8 4' CONCRETE BASE STUBS (SET/3) W/ACWS - Fits Bottom Section #7 and #8 and #TBX8ST 25.00 $280.00 $245.00

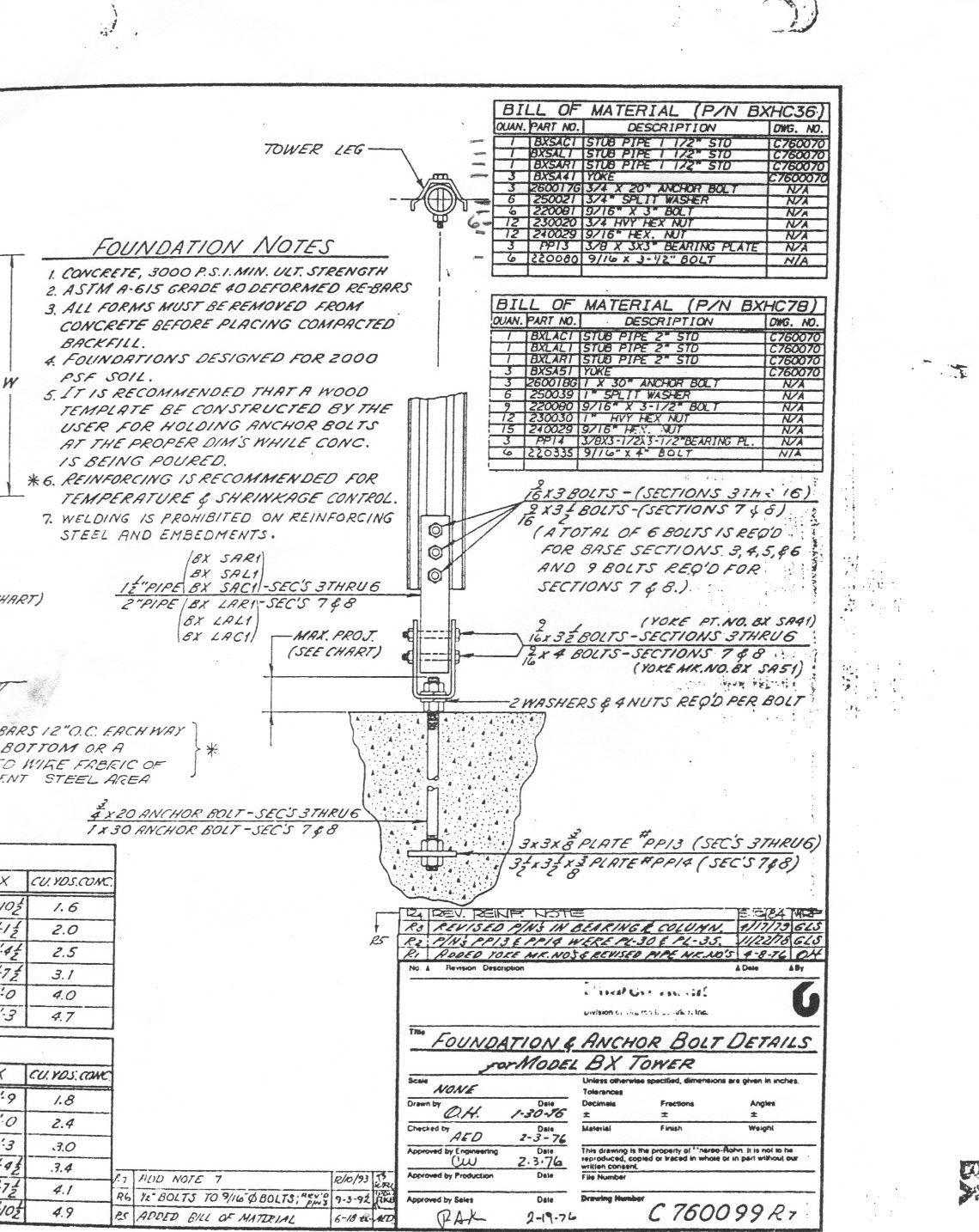

BXHC36 HB36 SELF SUPPORTING HINGED CONCRETE BASE W/ACWS (For Towers using a base section #3 to #6) 27.00 $608.00 $532.00
BXHC78 HB78 SELF SUPPORTING HINGED CONCRETE BASE W/ACWS (For Towers using a base section #7 to #8) 56.00 $798.00 $615.00
BXMK2 MK2 HARDWARE MAST KIT (Mast Clamps for the Light Duty mast supplies with the "BX" series towers) 2.00 $94.50 $83.00
BXR1A RP1A ROTOR PLATE (REPLACEMENT) For Top Section #1 1.50 $42.85 $38.00
BXR2A RP2A ROTOR PLATE (REPLACEMENT) For Top Section #2 2.00 $98.73 $87.00
BXR3A RP3A ROTOR PLATE (REPLACEMENT) For Top Section #3 2.50 $98.75 $88.00
BXSK1 SK1 EXTRA STEP KIT FOR SECTION 1 1.00 $25.22 $23.00
BXSK2 SK2 EXTRA STEP KIT FOR SECTION 2 1.00 $27.38 $24.00
BXSK3 SK3 EXTRA STEP KIT FOR SECTION 3 1.00 $28,68 $26.00
BXSM SM UNIVERSAL SIDE MOUNT 12.00 $230.00 $202.00

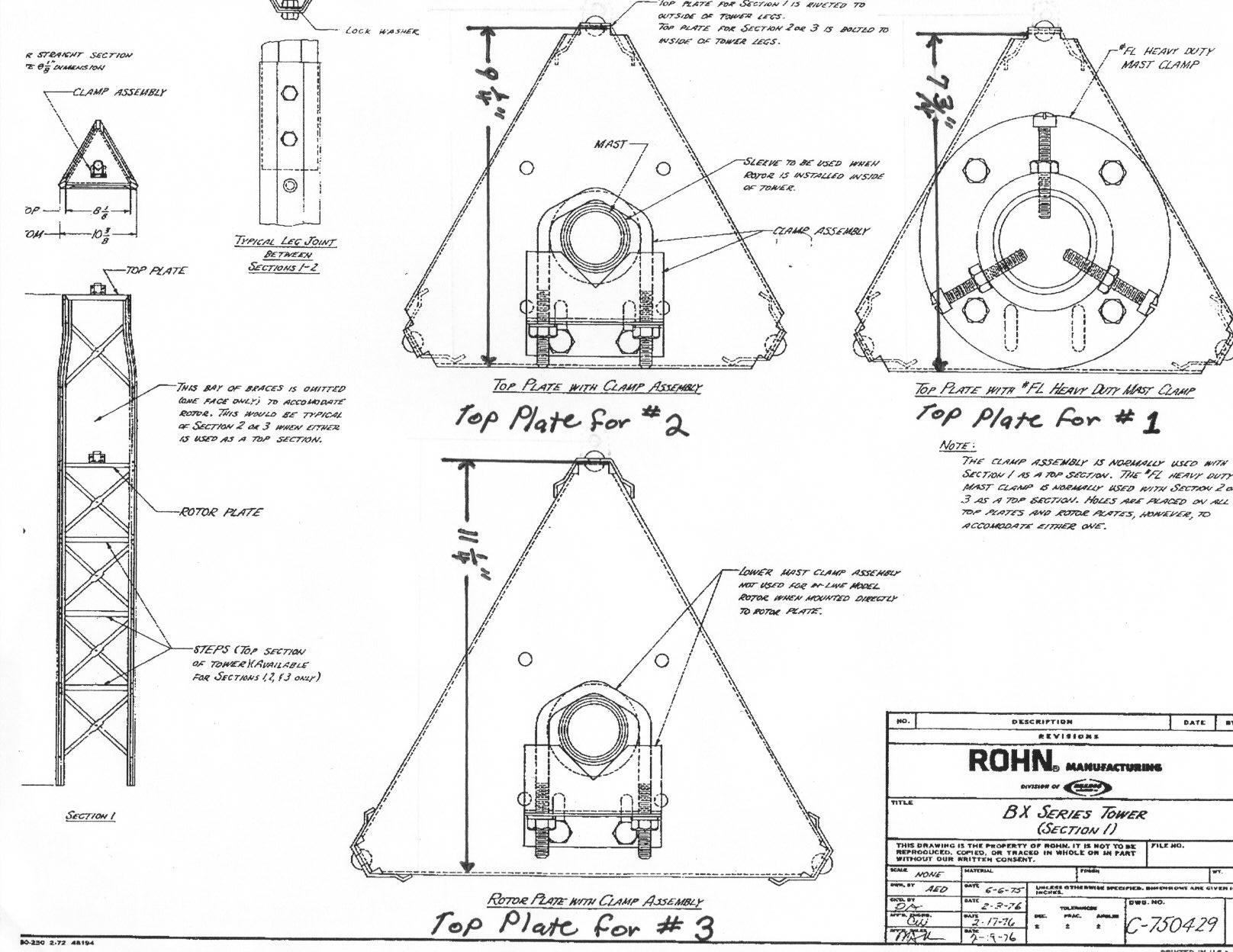

BXT1A TP1A TOP PLATE (REPLACEMENT) For Top Section #1                     Top Plate Sheet - All 2.00 $51.43 $45.00
BXT2A TP2A TOP PLATE (REPLACEMENT) For Top Section #2 2.00 $76.00 $67.00
BXT3A TP3A TOP PLATE (REPLACEMENT) For Top Section #3 2.50 $91,75 $81.00
EFBX TEFBX Erection Fixture Kit. Requires that you supply a 10-12 foot 2" OD pipe. All other components are in the kit. (Hey, just buy the tilt base, all you need is a pulley and rope) Note: Special Order Part, 6 months lead time! N/A   Call for Quote

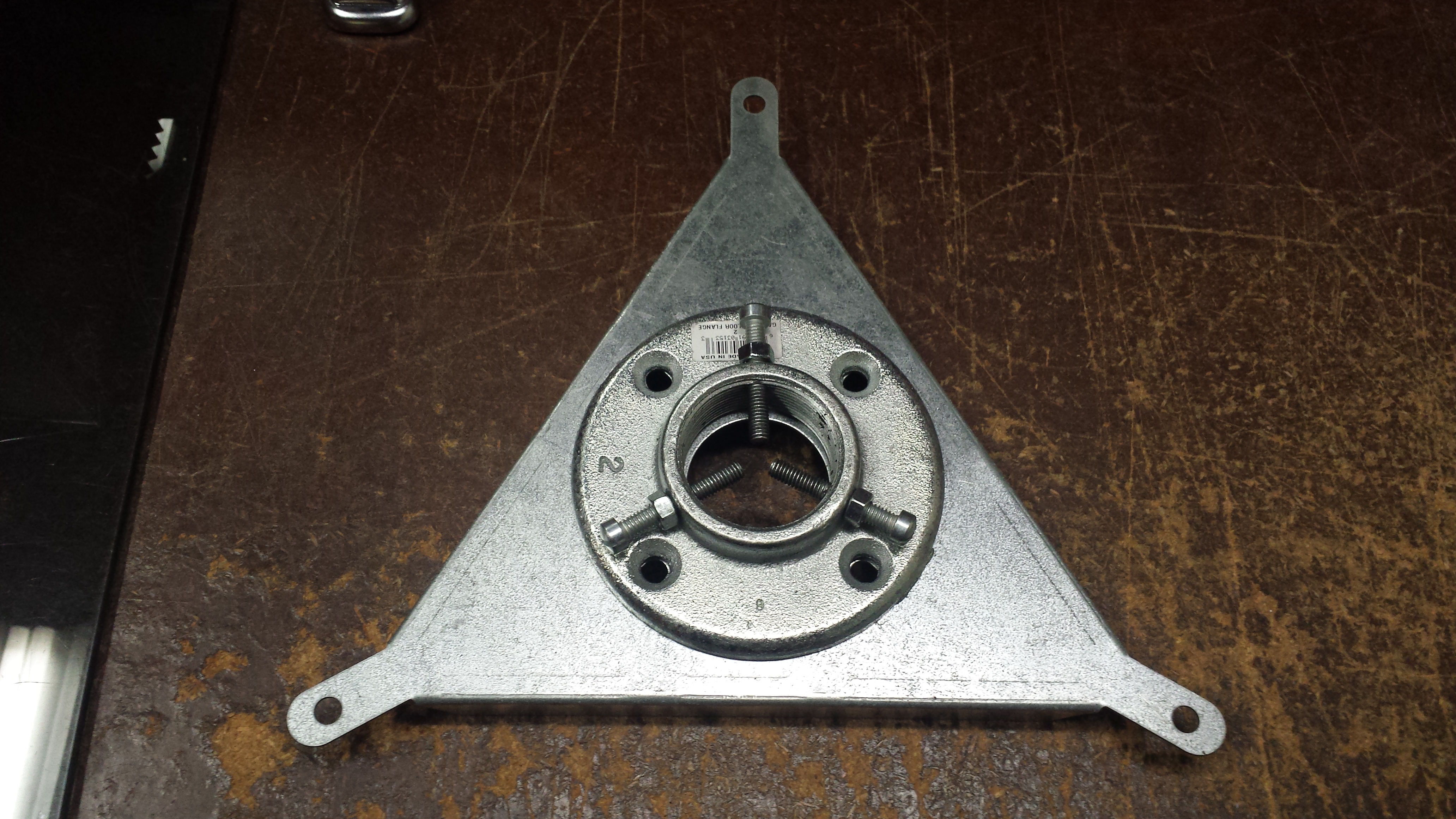

FL (Heavy Duty Mast Clamp) Recommended if you have a large antenna. (2) Req. TC Heavy Duty Mast Clamp Assembly (This is a optional heavier clamp. Use two to mount high wind load antennas) Cast Metal, works good with the M200H. (The ID of the center hole is specified to be 2.25" so that's the max. You will need to order 2 clamps for most installations.

Picture      Catalog Sheet

3.00 $75.00 $66.00
HBX24 THBX24 24' HEAVY DUTY TOWER ASSEMBLY (ORDER BASE STUBS, BXB4 and MAST AS SEPARATE ITEMS) 143.00 $1,845.00 $1,615.00
HBX32 THBX32 32' HEAVY DUTY TOWER ASSEMBLY (ORDER BASE STUBS, BXB5 and MAST AS SEPARATE ITEMS) 193.00 $2,481.00 $2,171.00
HBX40 THBX40 40' HEAVY DUTY TOWER ASSEMBLY (ORDER BASE STUBS, BXB6 and MAST AS SEPARATE ITEMS) 266.00 $3,159.00 $2,765.00
HBX48 THBX48 48' HEAVY DUTY TOWER ASSEMBLY (ORDER BASE STUBS, BXB7/8 and MAST AS SEPARATE ITEMS) 341.00 $3,963.00 $3,468.00
HBX56 THBX56 56' HEAVY DUTY TOWER ASSEMBLY (ORDER BASE STUBS, BXB7/8 and MAST AS SEPARATE ITEMS) 424.00 $4,822.00 $4,220.00
HDBX24 THDBX24 24' EXTRA HEAVY DUTY TOWER ASSEMBLY (ORDER BASE STUBS, BXB5 and MAST AS SEPARATE ITEMS) 171.00 $1,992.00 $1,743.00
HDBX32 THDBX32 32' EXTRA HEAVY DUTY TOWER ASSEMBLY (ORDER BASE STUBS, BXB6 and MAST AS SEPARATE ITEMS) 231.00 $2,739.00 $2,397.00
HDBX40 THDBX40 40' EXTRA HEAVY DUTY TOWER ASSEMBLY (ORDER BASE STUBS, BXB7/8 and MAST AS SEPARATE ITEMS) 305.00 $3,542.00 $3,100.00
HDBX48 THDBX48 48' EXTRA HEAVY DUTY TOWER ASSEMBLY (ORDER BASE STUBS, BXB7/8 and MAST AS SEPARATE ITEMS) 397.00 $4,402.00 $3,852.00
TB3 TB3 THRUST BEARING FOR 2" OD Max. MAST (Generally the M200H) Price assumes shipping with a BX tower from OH shop 3.08   $224.00
TB4 TB4 THRUST BEARING FOR 3" OD Max. MAST (Usually too much mast for a BX, Not Recommended) Price assumes shipping with a BX tower from OH shop 3.20   $300.00
M8 P8114 8' MAST, PRE-GALVANIZED (This Light Duty Mast is included with all standard "BX" tower kits only) 6.50 $53.88 $48.00
- AB30 30 Inch X 1" Base Bolt as used in the HB78, Just a Bolt, no other Hardware (Fits Section 7 & 8 Base ) -   Call for Quote
- AB20 20 Inch X 3/4" Base Bolt as used in the HB36, Just a Bolt, no other Hardware (Fits Section 3-6 Base ) -   Call for Quote
- HB78-Reinstall Complete Reinstall kit of the embedded material in the HB78 base. Used when moving a tower. Just material embedded in the Concrete -   Call for Quote
- HB36-Reinstall Complete Reinstall kit of the embedded material in the HB36 base. Used when moving a tower. Just material embedded in the Concrete -   Call for Quote
- N34 3/4 Inch Heavy Duty Base Nut, as used in the HB36 Hinged Base     Call for Quote
- N1 1 Inch Heavy Duty Base Nut, as used in the HB78 Hinged Base     Call for Quote
HWP-BX24 HWP-TBX24 Complete Tower Hardware Kit for the BX24 (Note, Hardware kits are included with new towers) Approx. 10.00 $126.65 $111.00
HWP-BX32 HWP-TBX32 Complete Tower Hardware Kit for the BX32 Approx. 10.00 $146.90 $129.00
HWP-BX40 HWP-TBX40 Complete Tower Hardware Kit for the BX40 Approx. 10.00 $165.83 $146.00
HWP-BX48 HWP-TBX48 Complete Tower Hardware Kit for the BX48 Approx. 10.00 $186.24 $163.00
HWP-BX56 HWP-TBX56 Complete Tower Hardware Kit for the BX56 Approx. 10.00 $201.00 $177.00
HWP-BX64 HWP-TBX64 Complete Tower Hardware Kit for the BX64 Approx. 10.00 $264.83 $232.00
HWP-HBX24 HWP-THBX24 Complete Tower Hardware Kit for the HBX24 Approx. 10.00 $130.00 $113.75
HWP-HBX32 HWP-THBX32 Complete Tower Hardware Kit for the HBX32 Approx. 10.00 $150.00 $132.00
HWP-HBX40 HWP-THBX40 Complete Tower Hardware Kit for the HBX40 Approx. 10.00 $169.30 $149.00
HWP-HBX48 HWP-THBX48 Complete Tower Hardware Kit for the HBX48 Approx. 10.00 $195.00 $171.00
HWP-HBX56 HWP-THBX56 Complete Tower Hardware Kit for the HBX56 Approx. 10.00 $223.00 $196.00
HWP-HDBX24 HWP-THDBX24 Complete Tower Hardware Kit for the HDBX24 Approx. 10.00 $140.73 $124.00
HWP-HDBX32 HWP-THDBX32 Complete Tower Hardware Kit for the HDBX32 Approx. 10.00 $170.25 $149.00
HWP-HDBX40 HWP-THDBX40 Complete Tower Hardware Kit for the HDBX40 Approx. 10.00 $198.25 $174.00
HWP-HDBX48 HWP-THDBX48 Complete Tower Hardware Kit for the HDBX48 Approx. 10.00 $215.00 $189.00
BXAC3-3     Data Sheet ACP3-3 24' Anti-Climb Kit (Set of 3)     Instruction Sheet Fits Base Section 3, Custom Made, 3 week lead Time Minimum 27.0 $672.12 $589.00
BXAC3-4     Data Sheet ACP3-4 32' Anti-Climb Kit (Set of 3)     Instruction Sheet Fits Base Section 4, Custom Made, 3 week lead Time Minimum 32.0 $739.83 $648.00
BXAC3-5     Data Sheet ACP3-5 40' Anti-Climb Kit (Set of 3)     Instruction Sheet Fits Base Section 5, Custom Made, 3 week lead Time Minimum 44.0 $838.93 $735.00
BXAC3-6     Data Sheet ACP3-6 48' Anti-Climb Kit (Set of 3)     Instruction Sheet Fits Base Section 6, Custom Made, 3 week lead Time Minimum 50.0 $842.00 $737.00
BXAC3-7     Data Sheet ACP3-7 56' Anti-Climb Kit (Set of 3)     Instruction Sheet Fits Base Section 7, Custom Made, 3 week lead Time Minimum 66.0 $938.42 $822.00
BXAC3-8     Data Sheet ACP3-8 64' Anti-Climb Kit (Set of 3)     Instruction Sheet Fits Base Section 8, Custom Made, 3 week lead Time Minimum 76.00 $997.85 $873.00
BXAC3-8S ACP3-8S AntiClimb Kit for the BX8-Straight Section,  Fits Base Section 8-Straight, Custom Made, 3 week lead Time Minimum 83.00   Call for Quote

 BX Notes:

bullet

All tower kits are supplied with their complete hardware kits.

bullet

All standard "BX" tower kits are supplied with a standard set of clamps and a top mast . The HBX and HDBX are not supplied with a mast. Generally the M200H with a pair of "FL" clamps is ordered for those. The top plates are drilled for the supplied standard mast & clamp set. To use the TB3 or TB4 you will need to drill your own mounting holes.

bullet

You must order concrete base stubs or hinged base separate when you place your order.

bullet

As of 04/25/2022 THE POSTED PRICING IS CORRECT AND ACCURATE.

bullet

For Site Specific State Stamped Engineering Drawings contact "The Paul J. Ford Company": Tel: 614-221-6679 We cannot supply drawings for this model tower from the manufacturer.

bullet

We actually supply needed services to get your tower approved not just a low price & jacked up shipping charges like some others do.

bullet

It's one of those "You Get What You Pay For" things. We will be here when you need us next year.



BX Install Video: http://www.youtube.com/watch?v=VzWYuS_o6kI

Another Install Video: http://www.youtube.com/watch?v=Qe7-GxiqTro



New Catalog / Instruction / Specification Sheets for 2021

Order Form For ROHN Towers & Accessories

Quotation Request Sheet

Manufacturer's Warranty

Sample State Stamped Engineering Drawing, HDBX-48

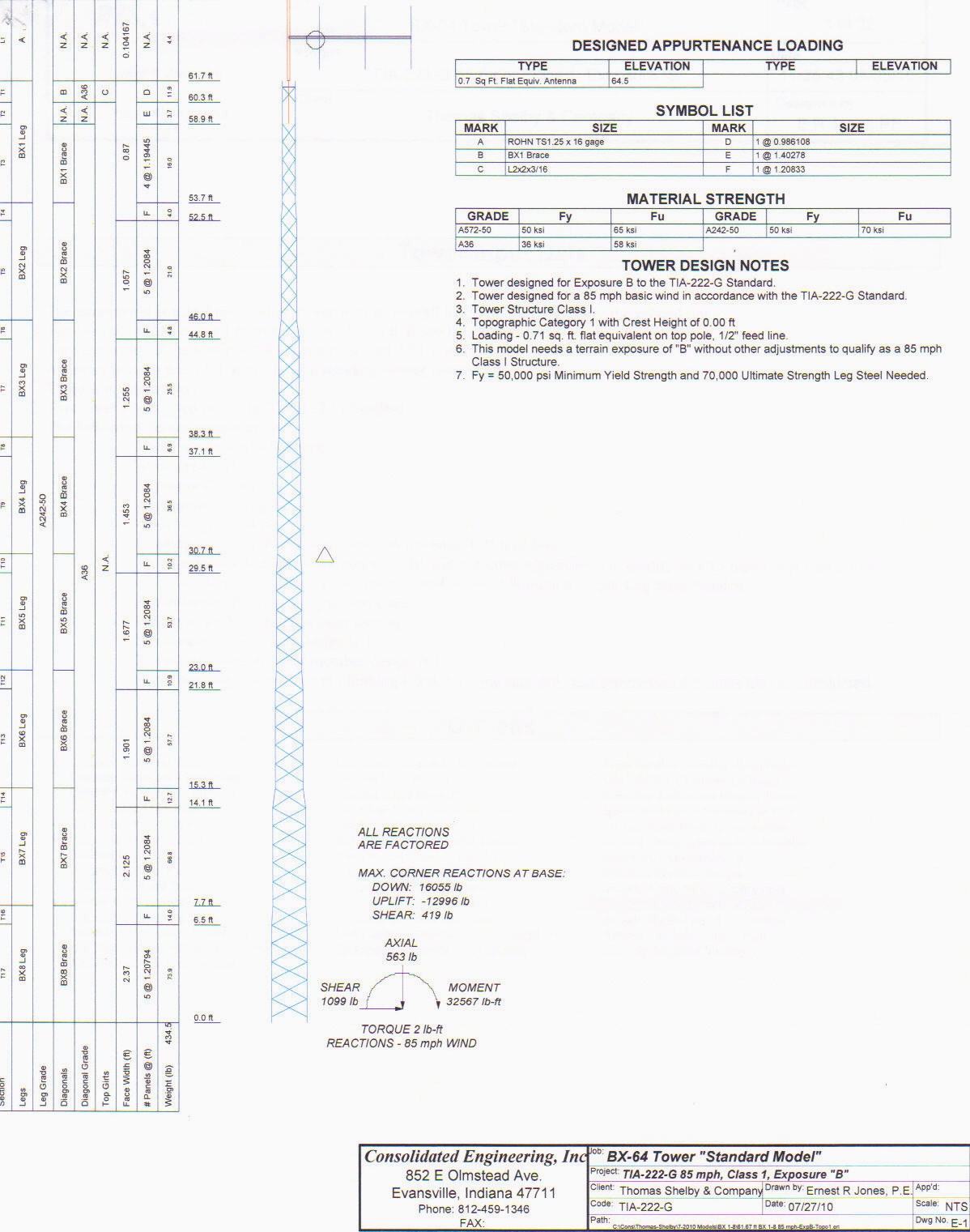

New BX-64 REV-G Drawing
